SISTEMAS DE BRIDAS
Bridas forjadas para conexiones críticas — ASME, EN, DIN, JIS. Tipos, clases de presión y grados de material.
At a Glance
Types
WN · SO · BL · SW
Welding neck, slip-on, blind, socket weld and more for every connection need.
Standards
ASME · EN · DIN
B16.5, B16.47, EN 1092-1, DIN, JIS — compliant and traceable.
Range
½" – 80"
DN15–DN2000, Class 150–2500, PN6–PN400.
Application
Oil & Gas · Power
Pipeline, valves, pumps, wind towers; full material grades on spec page.
PRODUCT OVERVIEW
Flange Types We Supply
We supply industrial flanges and related forgings for piping, valves, pumps and equipment. Products are manufactured to international standards with traceable material and NDT. Standard identification on flanges and packing (e.g. Class 150-8, DN 25, DN 20) supports correct selection and delivery.
MAIN FLANGE TYPES
| Type | Name | Description |
|---|
| Threaded Flange | TH | Threaded bore for screw connection to pipe; no welding. |
| Plate Flange | Plate | Flat ring with centre bore and bolt holes; simple slip-on style. |
| Slip-On Flange | SO | Slips over pipe; fillet weld both sides. Common for lower pressure. |
| Welding Neck Flange | WN | Tapered hub butt-welded to pipe; best for high pressure and critical service. |
| Long Weld Neck Flange | LWN | Extended neck for vessel nozzles and special layouts. |
| Blind Flange | BL | Solid disc to close pipe end; same bolt circle as matching flanges. |
| Socket Welding Flange | SW | Pipe inserted into socket and fillet welded; compact. |
| Special Flange | Special | Non-standard dimensions or geometry to order. |
Wind power flanges, flange packing (gaskets), and ring forgings for custom machining are also available. Material grades: see specification page.
FLANGE PRODUCTS
Finished flanges — storage and dispatch

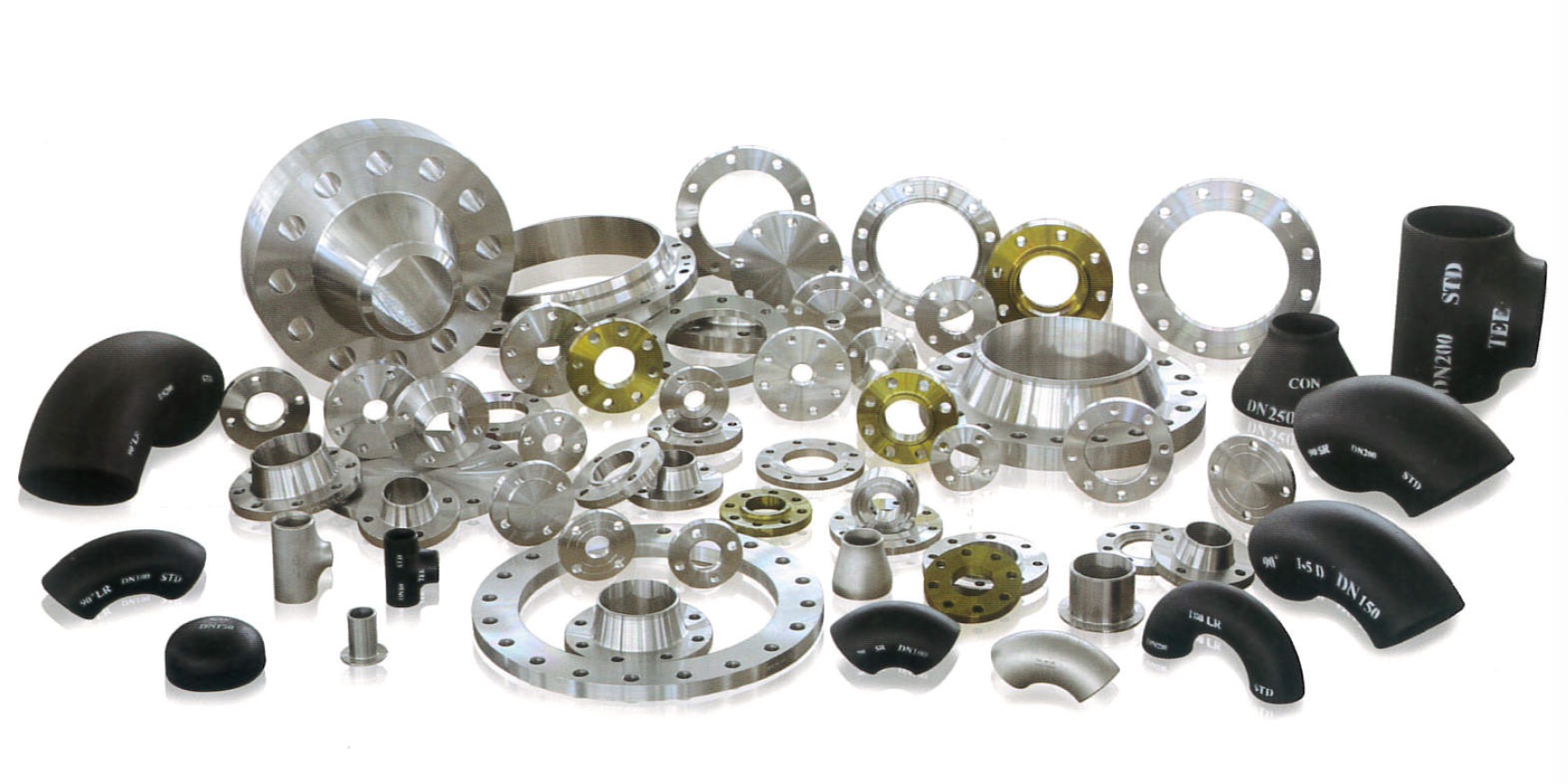

Silver metal flanges with blue protective caps or gaskets; Class 150-8, 150-4, 300-2, DN 25, DN 20 and other sizes. High-finish surfaces, clean packing, ready for export.
SCALE & MANUFACTURING
Large flanges and forging process

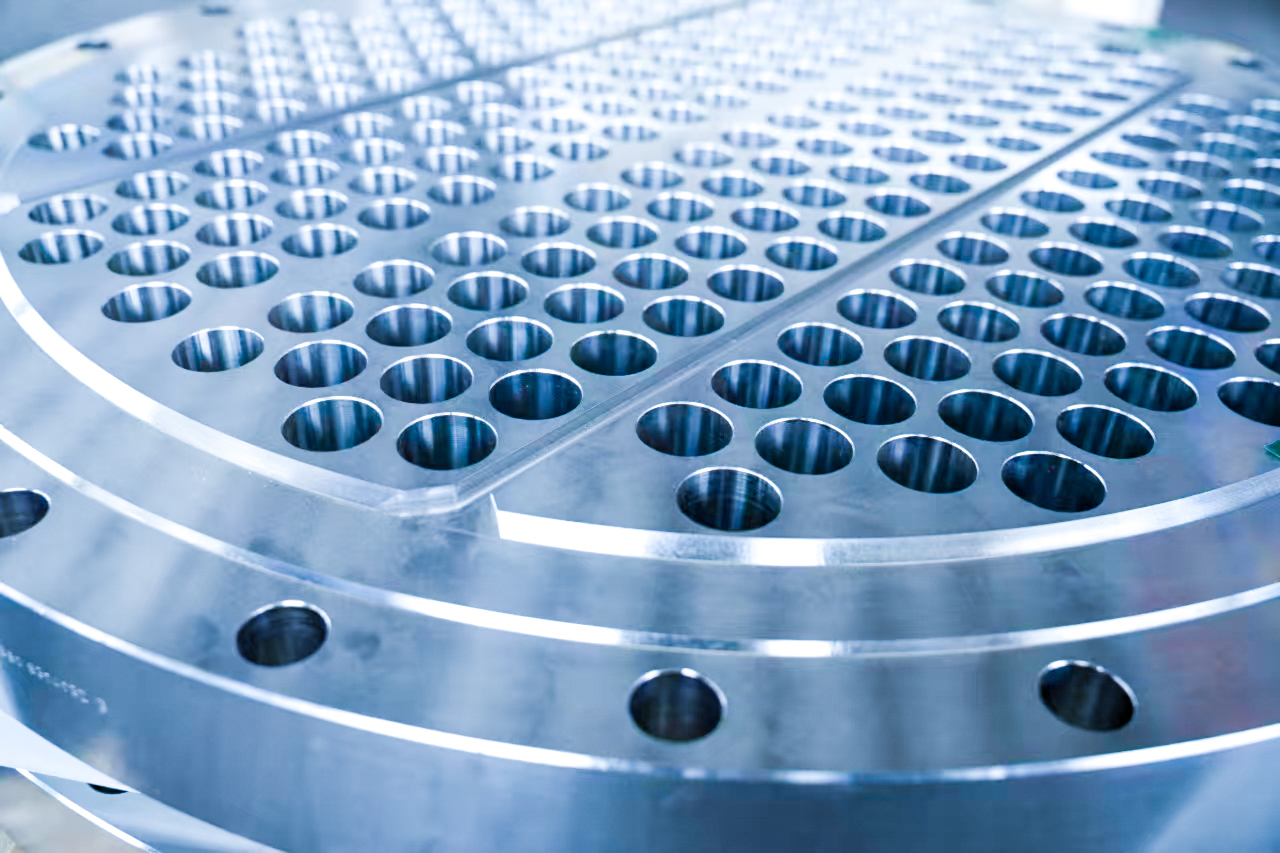

Large-diameter flanges for heavy piping; hot forging of flange blanks for strength and integrity.
SPECIFICATION SUMMARY
Typical range
| Item | Range |
|---|
| Size (inch) | 1/2" – 80" |
| Size (DN) | DN15 – DN2000 |
| Pressure class | ASME Class 150 – 2500 |
| PN rating | EN PN6 – PN400 |
| Face types | RF / RTJ (as applicable) |
| Standards | ASME B16.5, B16.47, EN 1092-1, DIN, JIS |

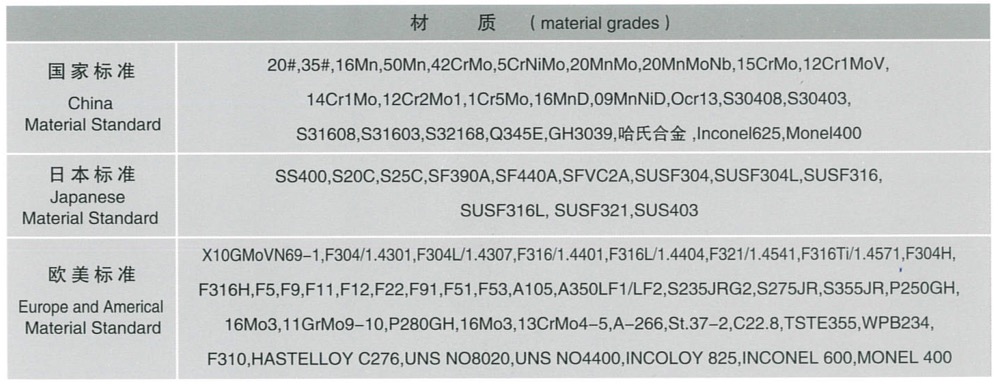

| Materials | See Material Grades table on specification page |
TECHNICAL REFERENCE
Product overview & materials
Key flange types and material grades for reference; final selection per project.
